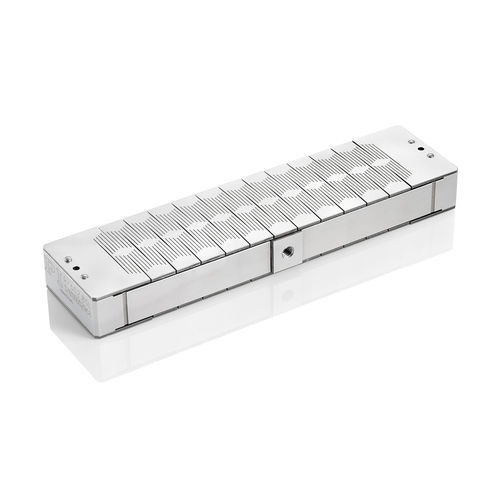

Linear piezoelectric actuator P-602 series

high-speedall-ceramichigh load capacity

With Guide for Travel Ranges to 1 mm • Flexure guides for linear motion with minimum tip and tilt • Stiff and backlash-free construction • Available with integrated position sensors • Outstanding lifetime due to PICMA® piezo actuators • Ideal OEM actuator for force generation in adaptive systems technology, for nanoimprint processes or machine tools • Customized versions with longer travel range, shorter response time or nonmagnetic Application fields • Nanopositioning • High-speed switching • Patch clamp • Microdispensing • Adaptive systems technology / automation • Photonics / integrated optics • Biotechnology Outstanding lifetime thanks to PICMA® piezo actuators The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven. High guiding accuracy due to zero-play flexure guides Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.
