Pneumatic transport system

hydrauliccar

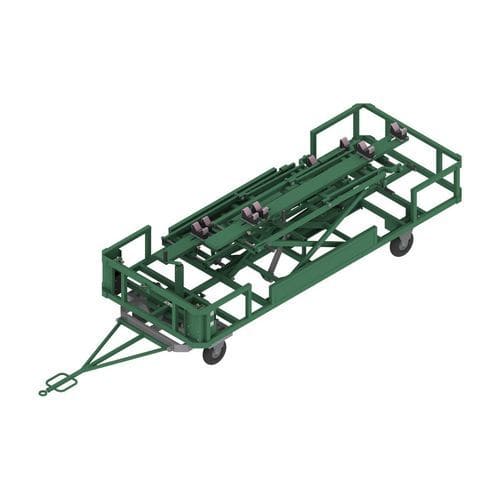

The transport car of Pinto Brasil allows to place the missiles in any position, resorting to several movements, namely: Movement in height made manually by a hydraulic pump, which descends through the opening of the valve; Transverse movement, front and rear, to compensate for small deviations of the aircraft position at the angle of the table to align with the wing angle of the airplane; Forward and / or backward movement to the support table (140mm) to facilitate insertion into the wing guides of the airplane. General dimensions: According client specifications Maximum speed: 12km/h Standard systems: Supports existing standard missile systems Belts: Straps to ensure the safe transport of the missile by towing Weight: Without load: 475 Kg | With load: 675 Kg Position system: Parking brake and parking brake system stabilization during the final loading phase on the aircraft Pneumatic Wheels Folding coupling Capacity: 2 missiles up to 2.9 m in length, of various diameters and weight of about 100 kg each
