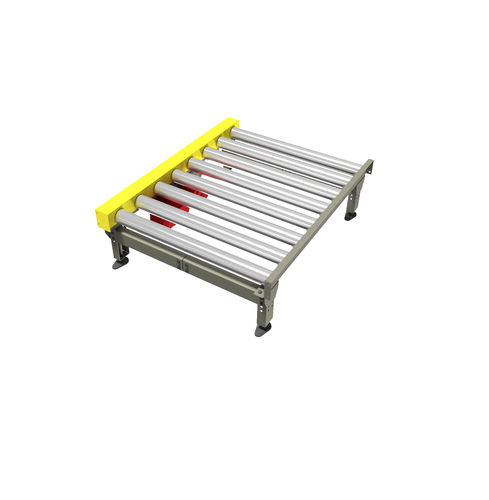

Roller conveyor horizontallineartransport
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Form
- horizontal, linear
- Function
- transport, handling, accumulation, loading, unloading, distribution, inspection, buffer, weighing
- Construction
- compact, flexible, roller, height-adjustable, stationary
- Drive mechanism
- electric drive, non-motorized, chain drive, automatic, drum motor
- Transported product
- food, for pallet, for boxes, for cardboard boxes, for packaging, for containers, for automatic machines, for wood, for drums, for vehicles, for tires, long product, for wheels
- Applications
- for heavy loads, for heavy-duty applications, for small loads, for large products, for process applications
- Sector
- for the food industry, for the automotive industry, for logistics, for assembly lines, for the wood industry, for the aeronautical industry, for the cosmetics industry, assembly line, for assembly, for packaging lines, for distribution centers
- Other characteristics
- continuous, variable speed, long-distance, stainless steel, for drive systems, custom-made
- Maximum load
Min.: 50 kg
(110.231 lb)Max.: 6,000 kg
(13,227.736 lb)- Speed
Min.: 12 m/min
Max.: 18 m/min
900 m/min
(49.21 ft/s)- Effective width
Min.: 900 mm
(35 in)Max.: 1,300 mm
(51 in)- Length
Min.: 1,400 mm
(55.12 in)Max.: 6,000 mm
(236.22 in)
Description
Product Description
Our roller conveyor is engineered for the horizontal transportation of both full and empty pallets. Thanks to the tangential drive principle and frame design, the rollers can be effortlessly repositioned. An external chain tensioning station simplifies precision roller chain re-tensioning, while the sturdy frame profile serves as a reliable side guide. The drive can be positioned on the right or left side of the travel direction, and adjustable supports ensure easy compensation for floor irregularities.
Technical Data
General Technical Data
Max. Load Capacity: 1500 kg/pallet and 6000 kg on the conveyor
Conveyor Speed: 15 m/min
Ambient Temperature: 5 to 50°C
Not suitable for inclined or declined applications
Gearmotors
Power Options: 0.18 kW | 0.37 kW | 0.55 kW | 0.75 kW
Rollers
Rollers: Ø 89x3 mm
Sprocket: Z15 – 5/8’’
Material: Zinc-plated steel
Profile
Color: Powder-coated finish with a RAL to be defined
Material: 4 mm bended steel
Dimensions
Module Conveying Width: According to pallet widths
Conveying Height (TOR): 350 to 650 mm
Roller Pitch (P): 125 and 175 mm
Module Length (ML): Between 1400 and 5950 mm
