Assembly line transfer system

handlingfor palletindustrial

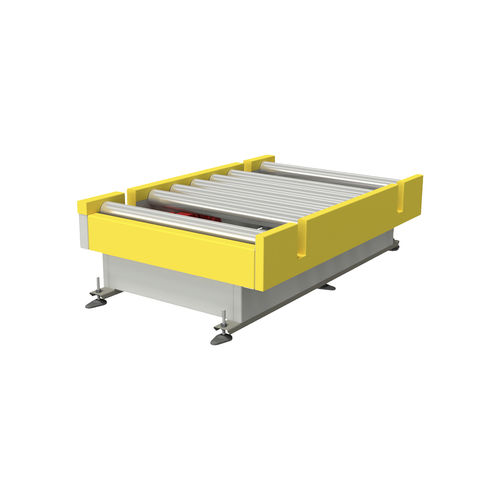

Our roller transfer is the perfect solution for a 90º change of direction in the horizontal transportation of both full and empty pallets. A robust steel profile frame serves as the lifting frame for eccentric lifting cams equipped with ball bearings. The parallel lift is electrically operated and supported by maintenance-free ball bearings. Adjustable supports ensure easy compensation for floor irregularities. Technical Data General Technical Data Max. Load Capacity: 1500 kg Lifting Time: 3 seconds Ambient Temperature: 5 to 50°C Not suitable for inclined or declined applications Number of Chains: 2 or 3 Roller Conveyor Gearmotor Power: 0.18 kW Lifting Gearmotor Power: 0.55 kW Rollers Rollers: Ø 89x3 mm Sprocket: Z15 – 5/8’’ Material: Zinc-plated steel Dimensions Module Conveying Width: According to pallet widths Conveying Height: 350 to 650 mm Module Length: 1400 mm
