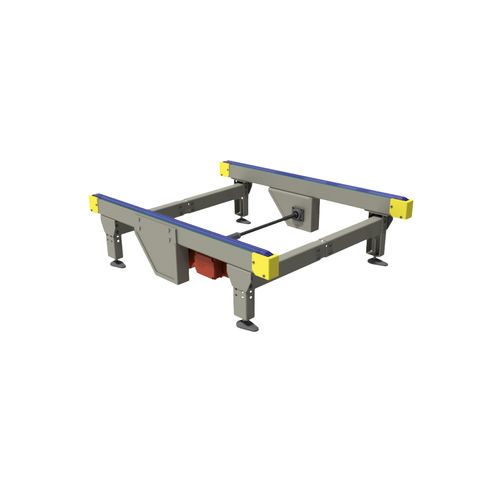

Chain conveyor horizontallineartransport
Add to favorites
Compare this product
Characteristics
- Technology
- chain
- Form
- horizontal, linear
- Function
- transport, handling, accumulation, transfer, loading, unloading, storage, inspection, weighing
- Construction
- modular, compact, flexible, height-adjustable, two-track
- Drive mechanism
- electric drive, manual, central drive, automatic
- Transported product
- for pallet, for packaging, for containers, for wood, for concrete, for drums, for automobiles, for tires, glass, long product, for wheels
- Applications
- for heavy loads, for heavy-duty applications, for medium loads, for small loads, for large products, medium-sized piece
- Sector
- for the food industry, construction, for the automotive industry, for logistics, for assembly lines, for the wood industry, for the aeronautical industry, assembly line, for assembly, for packaging lines, for distribution centers
- Other characteristics
- stainless steel, variable speed, long-distance, for drive systems
- Maximum load
Min.: 100 kg
(220.462 lb)Max.: 3,000 kg
(6,613.868 lb)- Speed
15 m/min
Min.: 12 m/min
Max.: 18 m/min
- Effective width
Min.: 750 mm
(30 in)Max.: 1,150 mm
(45 in)- Length
Min.: 1,000 mm
(39.37 in)Max.: 6,000 mm
(236.22 in)
Description
Our chain conveyors excel in horizontally transporting both full and empty pallets. Each chain run employs a duplex precision roller chain with straight links as the transport chain, guided by a plastic chain guide. An integrated tensioning station simplifies chain re-tensioning, and the drive station is strategically positioned between runs. Adjustable supports facilitate compensation for floor irregularities. The module is available with either two or three chain runs.
Technical Data
General Technical Data
Max. Load Capacity: 1500 kg/pallet and 3000 kg on the conveyor
Conveyor Speed: 15 m/min
Ambient Temperature: 5 to 50°C
Not suitable for inclined or declined applications
Number of Chains: 2 or 3
Gearmotors
Power Options: 1.1 kW | 2.2 kW
Profile
Color: Powder-coated finish with a RAL to be defined
Material: 4 mm bended steel
Dimensions
Chain Spacing: According to pallet widths
Conveying Height (TOC): 350 to 650 mm
Module Length (ML): 1400 to 6000 mm
