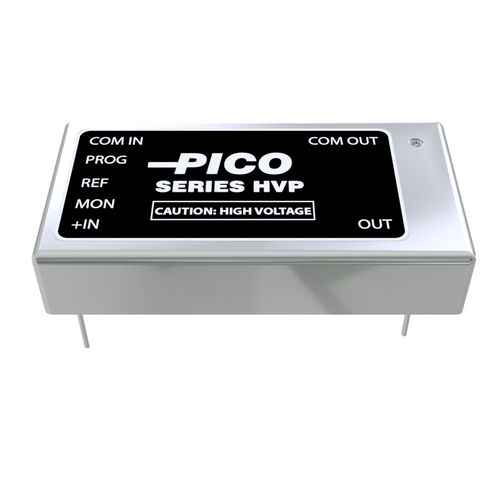

Encapsulated DC-DC converter HVP series

high-voltagepowerwith low ripple

The HVP series of fully regulated modules are 0% to 100% output voltage programmable by internal reference or external voltage plus additional 10% fine-tune calibration. These modules have a voltage monitor and shutdown features. Protections include input overvoltage, output short-circuit, output overload, and over temperature. Precise line & load regulation with low ripple down to 0.007% peak to peak. The 2.55″ x 1.3″ x 0.5″ low profile 6-sided shielded metal case size will mitigate EMI noise and inteference. Features 0-100% programmable output feature Compact 2.55” x 1.3” x 0.5” 6-sided metal case Protected against input overvoltage, output short-circuit, output overload and over temperature 3 voltage programming methods Down to 0.007% peak to peak ripple <0.01% load regulation Shutdown feature Output voltage monitor feature 10% fine-tune calibration adjustment screw Options Expanded operating temp: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
