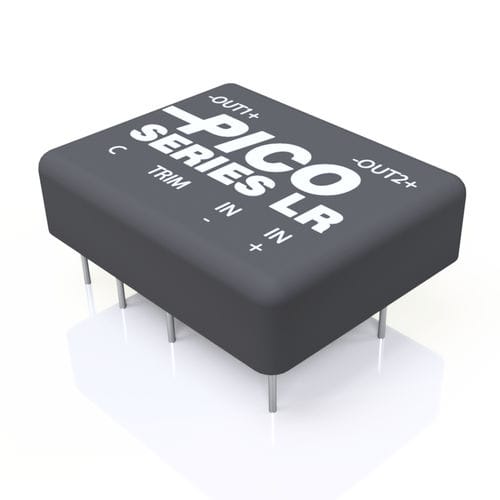

Encapsulated DC-DC converter LR series

3:1 input voltage rangeregulatedwide input range

The LR series is an isolated DC-DC converter with wide input range, tight regulation and six-sided shielded case. These modules have trim and control features. Single and dual isolated output models are standard. They can operate up to 5W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling. Features Six-sided shielded case Control feature Trimmable output Input/output isolation No external components required No heat sink or derating required Options Expanded operating temp: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
