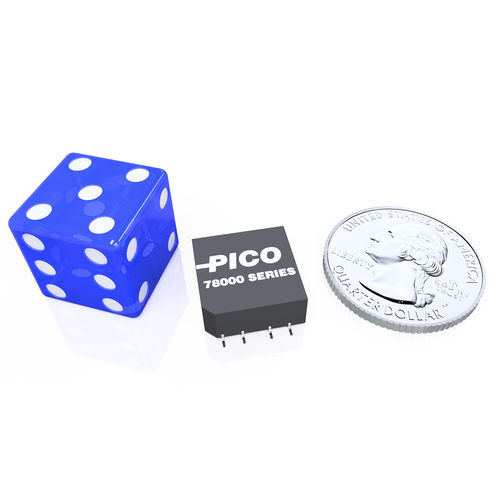

Audio transformer 78 seriesisolationencapsulatedfor electronics
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Applications
- for electronics, audio
- Mounting
- surface-mount
- Norms
- MIL-STD
- Other characteristics
- low-profile
- Electric power
0.05 W, 0.4 W
- Primary current
Min.: 1 mA
Max.: 31.6 mA
- Frequency
Min.: 300 Hz
Max.: 50,000 Hz
Description
PICO surface mount units utilize materials and methods to withstand extreme temperatures of vapor phase, I.R., and other reflow procedures without degradation of electrical or mechanical characteristics.
Specifications
MAXIMUM DISTORTION: 5% with rated power level at 1 KHz.
DIELECTRIC STRENGTH: All units tested at 200 V RMS.
INSULATION RESISTANCE: Greater than 10,000 Megohms at 300 V DC.
WEIGHT: 3 Grams
OPERATING TEMPERATURE: -55º C to +130º C
THERMAL SHOCK: 25 Cycles, Method 107, MIL-STD-202, Test Condition -55º C to +130º C.
MOISTURE SENSITIVITY LEVEL: MSL3
FEATURES
Extreme resistance to thermal shock
Ultra miniature size
PICO is approved QPL Source (MIL-PRF-27)
Magnetic Shield Design available
Electrostatic shielding can be added
Variation of standard designs available
Every unit can be made with a 300 thermal cycle guarantee using PICO's special SR construction. Contact factory for details.
