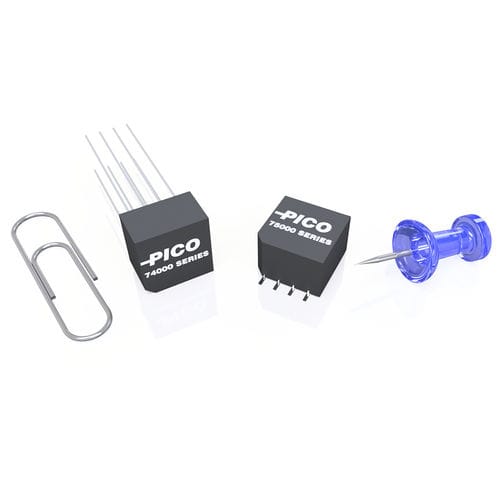

Pulse transformer 75 seriesencapsulatedhigh-voltagethrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- pulse
- Configuration
- encapsulated
- Electrical characteristics
- high-voltage
- Mounting
- through-hole
- Norms
- MIL-STD
- Primary voltage
Max.: 150 V
Min.: 16 V
Description
PICO surface mount units utilize materials and methods to withstand extreme temperatures of vapor phase, I.R., and other reflow procedures without degradation of electrical or mechanical characteristics.
Specifications
Units manufactured to MIL-PRF-21038.
DIELECTRIC STRENGTH: All units tested at 500 V RMS.
OPERATING TEMPERATURE: -55º C to +130º C
INSULATION RESISTANCE: Greater than 10,000 Megohms at 700 V DC.
TERMINALS: Meet solderability per MIL-STD-202, Method 208.
THERMAL SHOCK: 25 Cycles, Method 107, MIL-STD-202, Test Condition -55 º C to +130º C.
WEIGHT SIZE: 1-2.5 Grams; 2-4.5 Grams; 3-8.0 Grams
MOISTURE SENSITIVITY LEVEL: MSL3
Catalogs
No catalogs are available for this product.
See all of Pico Electronics‘s catalogsOther Pico Electronics products
SURFACE MOUNT TRANSFORMERS AND INDUCTORS
