SMD DC/DC converter module XPA series

high-power

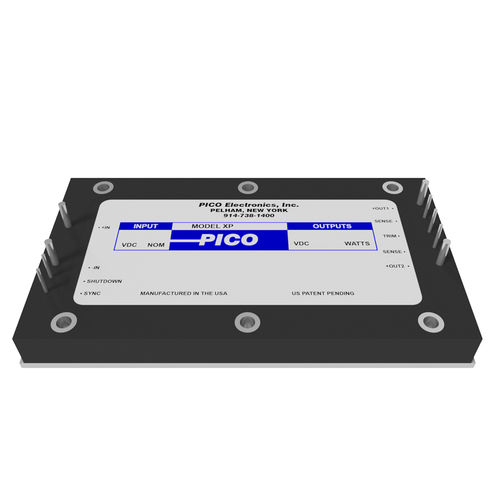

The XP series are isolated DC-DC converters with 2:1 input voltage ranges and high 300W output power in a low profile full brick size – 4.6″ x 2.4″ x 0.5″. These modules have trim capability, shutdown features and frequency sync. Protections include input overvoltage, output short-circuit, output overvoltage and over temperature. The case has six threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink. Features Input/output isolation Single outputs Up to +85°C baseplate operating temperature Trim capability Remote shutdown feature Operating Frequency sync feature Fixed operating frequency No external components required Options Expanded operating temp: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
