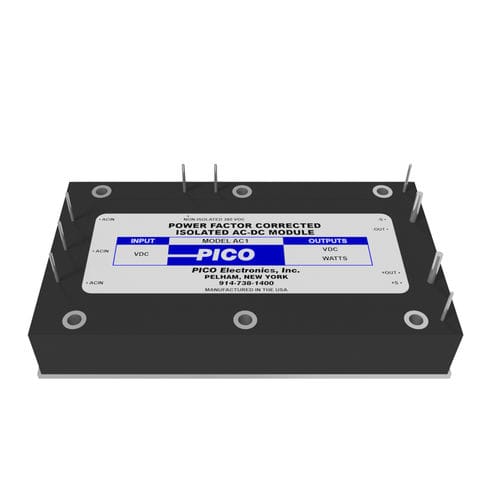

PFC module AC1 series

360 to 800Hz Input Frequency 3 Phase Input Available Consult Factory: 800-431-1064 Meets EN/IEC 61000-3-2 Requirements Universal Input Voltage: 85 to 265 VAC Power Factor Corrected, 0.99 (50 - 100% Full Load) Space Saving Design: One module replaces two Special Output Voltages Available Regulated Output Voltage Made in the USA, Fully Encapsulated Typical Features/Electrical Characteristics AC Line Input Voltage: 85 to 265 VAC 47-440 Hz Output Power: 150 to 300 watts, see chart 85 - 95 VAC Input, 200w maximum (5V, 150w max.) Output Voltage Ripple: 75-480 mV, See chart Operating Temperature: 0 to 85º C, case temperature. See application notes for proper thermal considerations. Availabe with -20°C and -40°C operating temperature range - Consult Factory Isolation: From Input to DC Output: 4242 VDC From Input or DC output to Case: 2121 VDC From AC Input to Auxiliary 380 VDC Output: Non-Isolated Capacitor Requirement: External at Auxiliary 380 VDC Pins: 220uf, 450 Volt Electrolytic * MUST BE INSTALLED Current Limit Setpoint: 130 % of full load rating (Typical) Operating Frequency: 100Khz: Fixed
