•Source and Read Fourteen T/C Types plus mV
J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P (Platinel), -13.000 to 80.000 mV
•Calibrate with Confidence
Resolution to 0.1 °F & °C; Accurate to 0.2°
Cold Junction Sensor Accurate to 0.05°C
•Verify Heat Treating Uniformity Survey Recorders and perform System Accuracy Tests

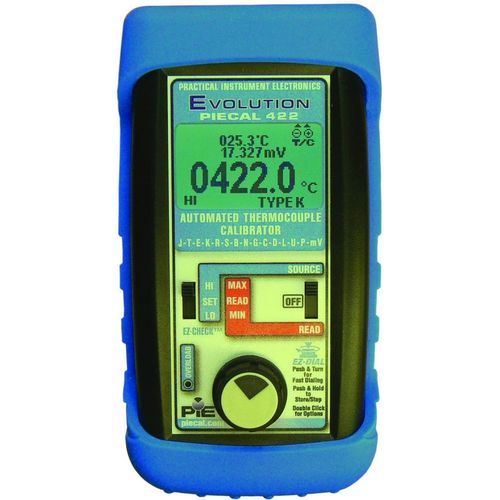

The PIE 422 is capable of meeting the requirements of an AMS 2750 Field Test Instrument when certified by an accredited laboratory.
•Faster Calibrations
Instantly select three outputs with EZ-CHECK switch
Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
•Easily Change T/C Types & Scale
Double click to select T/C type & °F & °C
•Easy-to-Read Display
Turn on the backlight to read in dark areas of the plant
•Use in the Plant, Field or Shop
Includes Rubber Boot and mV Test Leads
Low profile switches resist accidental damage
Brass screws for T/C wires plus mini T/C socket
•Simple “No Tool” Battery Changes
Four inexpensive “AA” batteries
•Verify Cold Junction Temperature & Output
Secondary displays of compensated millivolt setting and cold junction temperature
•Optional Accessories
Wire & Mini T/C Plug: J, T, E, K (020-0202); B, R/S, K (020-0203)
