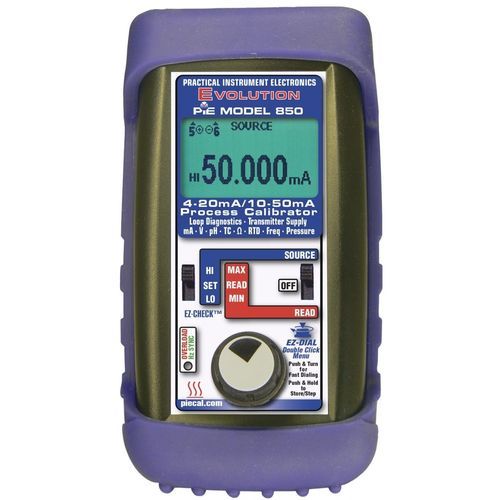

Multifunction calibrator PIE 850
voltageloopresistance

Multifunction calibrator - PIE 850 - PIE - Pratical Instrument Electronics, Inc - voltage / loop / resistance
Multifunction calibrator - PIE 850 - PIE - Pratical Instrument Electronics, Inc - voltage / loop / resistance
Multifunction calibrator - PIE 850 - PIE - Pratical Instrument Electronics, Inc - voltage / loop / resistance - image - 2
Multifunction calibrator - PIE 850 - PIE - Pratical Instrument Electronics, Inc - voltage / loop / resistance - image - 3
Multifunction calibrator - PIE 850 - PIE - Pratical Instrument Electronics, Inc - voltage / loop / resistance - image - 4
Multifunction calibrator - PIE 850 - PIE - Pratical Instrument Electronics, Inc - voltage / loop / resistance - image - 5
Add to favorites
Compare this product


Characteristics

Physical quantity
multifunction, voltage, loop, resistance, frequency, vibration, flow
Options
compact, HART
Temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Noise level

50 dB, 100 dB

Voltage

Max.: 999 V

Min.: -500 V

Description

•Lighten up your toolbox Compact calibrator replaces toolbox of single function devices •Technician friendly operation Intuitive EZ-DIAL double click menu makes it easier to setup than other multifunction calibrators. Uses the same menus as the single function PIE Evolution calibrators. Icons on the display indicate where to plug in the test leads. •Use it as a milliamp and voltage calibrator Source 0.000 to 24.000 mA, 0.000 to 50.000 mA, 00.00 to 10.250 VDC, -20.000 to 99.999 mV and -500.00 to 999.99 mV Read to 24.000/52.000 mA, 0.00 to 60.00 VDC, +/- 99.999 mV and +/- 999.99 mV Simulate 2 Wire transmitters Power up transmitters and loops(24 VDC @ 20 mA; 40 VDC @ 50 mA) with built in power supply Simplify HART hook ups with built in 250 ohm resistor •Troubleshoot Loop problems Quickly diagnose ground fault and current leakage with patented loop diagnostic technology(US Patent # 7,248,058) •Check all loop parameters at once with the LoopScope Simultaneously displays current, voltage and resistance to let you know the condition of a live loop. Finds problems with power supplies & loops with too many loads. Patented by PIE! •Calibrate directly in temperature (°C & °F) The PIE 850 works with the instruments you use. Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II) RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850) Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm •Checkout flow and vibration systems Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99 Hz, 9999.9 Hz, & to 20.000 kHz

VIDEO
