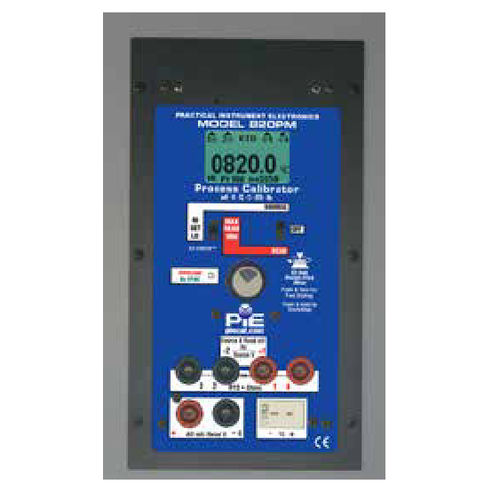

Multifunction calibrator PIE 820PM

temperatureresistancefrequency

•Calibrate milliamps and voltage Source 0.00 to 24.00 mA, 0.00 to 10.25 VDC and 0.00 to 80.00 mV Read to 24.00 mA, 00.00 to 10.,25 VDC, 0.0 to 60.0 VDC, 00.00 to 80.00 mV Simulate 2 Wire transmitters Power up transmitters and loops with built in 24 V power supply Simplify HART hook ups with built in 250 ohm resistor •Calibrate directly in temperature (°C & °F) Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II) RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850) Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm Resistance up to 4010 ohms •Checkout flow and vibration systems Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99 Hz, 9999.9 Hz, 20.000 kHz Calibrator features include: •Technician friendly operation Intuitive EZ-DIAL double click menu makes it easier to setup than other multifunction calibrators. Uses the same menus as our hand held models •Quickly set any three outputs plus automatic stepping & ramping Set any value quickly with the adjustable EZ-DIAL; store any three output settings for instant recall with the EZ-CHECK™ switch Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%, 25% or 10% of span Select RAMP to smoothly increase and decrease the output between Zero and Span Set step/ramp time to match your system from 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds •Easily recall stored values Use the EZ-CHECK™ switch to recall the HI and LO values automatically stored when in READ mode
