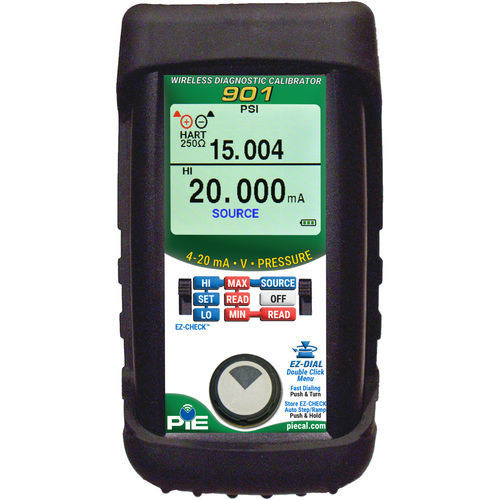

Pressure calibrator PIE 901

loopcurrentvoltage

•Calibrate Milliamp Instruments Source 0.000 to 24.000 mA & -25.00 to 125.00% of 4-20 mA Read 0.000 to 24.000 mA & -25.00 to 125.00% of 4-20 mA Simulate 2-Wire Transmitter, Power & Read Transmitters Accurate to ±(0.01% of Reading + 0.002 mA) •Calibrate Voltage Instruments Source 0.000 to 24.000 VDC Read -60.000 to 60.000 VDC Accurate to ± (0.02% of Reading + 0.01% Full Scale) •Calibrate pressure instruments with optional pressure modules Dual display of milliamp and pressure for calibration of I/P or P/I transducers and pressure gauges Choose from a wide selection of pressure modules along with hand pumps and tubing kits •Blue tooth functionality (for use with future PIE wireless pressure modules) •Large Color Display with color coded menus for simplified setup •Locate Loop Current Leakages Automatic indication of Loop Current and Leakage Current. Measure ground current leakage from faulty wiring, flooded conduit and corrosion bridges. Leakage typically appears as a Zero Shift and helps you decide if the transmitter needs calibration or if there is a problem in the loop wiring. •Faster Calibrations Three output EZ-CHECK switch 2 speed EZ-DIAL Stepping & Ramping •Includes AA Alkaline batteries, rubber protective boot and NIST Calibration card
