CNC lathe AY series
vertical3-axishydrostatic

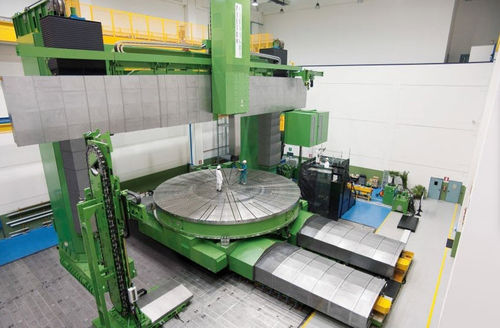

CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic
CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic
CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic - image - 2
CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic - image - 3
CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic - image - 4
CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic - image - 5
CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic - image - 6
CNC lathe - AY series - PIETRO CARNAGHI - vertical / 3-axis / hydrostatic - image - 7
Add to favorites
Compare this product

Go to the PIETRO CARNAGHI website for more information

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of axes
3-axis
Structure
hydrostatic, double-column, with moving table
Performance
high-rigidity
Other characteristics
large, Y-axis
Associated function
milling
Diameter

Min.: 6,200 mm
(244.09 in)

Max.: 14,000 mm
(551.18 in)

Spindle speed

Min.: 35 rpm
(219.911 rad.min-1)

Max.: 6,000 rpm
(37,699.112 rad.min-1)

Axe Z

Min.: 1,500 mm
(59 in)

Max.: 4,000 mm
(157 in)

Rapids on X

10,000 mm/min, 15,000 mm/min
(7 in/s, 10 in/s)

Rapids on Z

10,000 mm/min, 15,000 mm/min
(7 in/s, 10 in/s)

Nominal power

Min.: 40 kW
(54.4 hp)

Max.: 300 kW
(407.9 hp)

Description

• Hydrostatic axial bearing table for table loads up to 500 ton • Rigid structure with two columns ensuring maximum stability • Wide range of milling accessories and capability to interpolate up to 5 axes • Maximize the machining operations on the big components, reducing set up times on different machines • Rigid Hirth coupling connection for tool holders and accessories Table diameter - mm - 5000/5700 - 6000 - 6000 - 6500 - 8000 - 8000 - 10000 - 10000 Standard weight - t - 120 - 200 - 200 - 200 - 200 - 200 - 350 - 350 Max. allowable weight - t - 170 - 250 - 250 - 250 - 350 - 350 - 500 - 500 Turning height: fixed crossrail - mm - 1500 Turning height: movable crossrail - mm - 3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000 Ram section - mm - (350 x 350) - (400 x 400) - (500 x 500) - (600 x 600)
