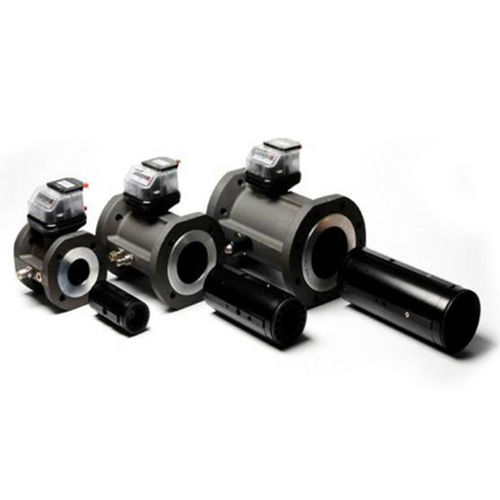

Turbine flow meter IMTM

for gasaluminumstainless steel

INDUSTRIAL METERING IMTM Turbine Meter Designed to measure gas velocity, the operating principle of the turbine meter incorporates an innovative method of conditioning flow in the meter body. A straightening section in the meter body conditions the gas flow by removing undesired swirl, and turbulence before it reaches the turbine rotor. The dynamic forces from gas flow initiate rotation of the turbine rotor. The precision machined rotor, mounted on axial shaft, includes high quality, low friction stainless steel ball bearings to allow world class measurement accuracy. Design features Removable meter cartridge assembly Optimized bearing construction Oil flushing and lubrication system Multi-stage flow conditioner Multi-functional index assembly Light weight aluminum body Turbine Meter Design Feature - - Removable metrological cartridge assembly - - High performance aluminum alloy turbine wheel - - Optimized bearing costruction - - Multi-stage integrated flow conditioner - - Simplified maintenance and repair - - Multi-functional index - - Light weight aluminum body
