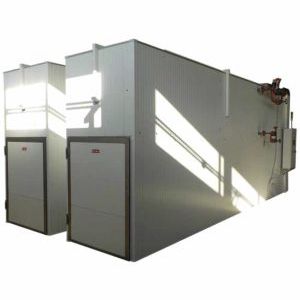

Drying tunnel for the food industry PG 128

EASY Dry PG 128 Tunnel DRYER Drying machine is designed for industrial drying of fruits, vegetables, herbs, and also other raw materials (besides explosive materials). Drying is performed with heated air. Heated air flows in the opposite direction from the trolley movement. Air is heated by passing trough heat exchanger which is located in the air duct. Powerfull axial fan, positioned in the upper air duct behind the heat exchanger, provides air circulation in the drying machine. Structural, drying machine consists from drying chamber and air duct over the drier. All parts of construction, trolleys, trays are executed in stainless steel. The machine housing is made of poliurethan panels. Doors are positioned at the frontal and back side of the machine. One is used for product entry and the other one for product output. Heat exchanger is constructed from the copper/inox tubes with aluminum fins. Product prepared for drying is positioned on the trays. Trays with the product are then inserted on the trolleys. During process, trolleys are located in the PG 128 tunnel dryer. Semicontinuous process is provided by trolley entering in the drier in intervals (of around one hour), like following: – Bring the trolley with the fresh product to the entrance door – Open the output door and take out the trolley with the already dried product – Close the output door – Open the entry door – Put inside the trolley with the fresh product. All other trolleys in the machine will move longwise for one place.
