USB transceiver 10M66

UHFFMradio

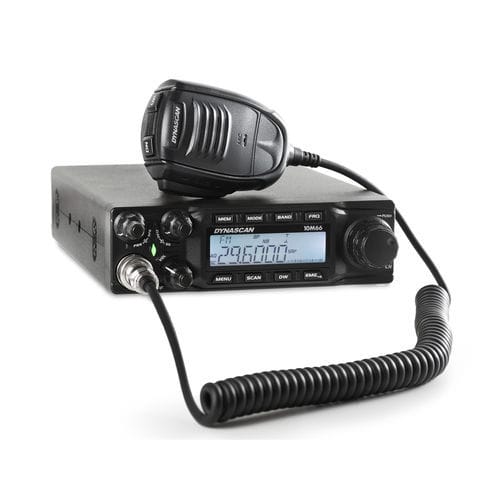

Dynascan 10M66 is a 10 meter band (28-29.7 Mhz) mobile radio for radio amateurs with a PEP power in SSB of 60 W, AM, FM, LSB and USB (Sideband) modes. It has a large LCD screen with visualization of the frequency and all kinds of information, with 7 adjustable colors. Among its multiple functions, we can stand out CTCSS/DCS, ECHO, SQ, ASQ, TOT, adjustments of RF gain and transmission power, scanner, dual watch. • Working frequency: 28.000 to 29.700 MHz • Frequency tuning steps: 100 hz, 1 kHz, 10 kHz, 100 kHz and 1 MHz • Clarifier setting: +-1 kHz • Flexible and PC-programmable function menu • CTCSS/DCS • SCAN function • ASQ function • ECHO function • TOT function • Dual watch • Adjustable RF gain and transmission power • Input Voltage: 13.8 VCC • Output power: AM: 60 W. (PEP) / FM: 45 W. / SSB: 60 W. (PEP) • Large LCD display • UHF/SO-239 antenna connector • Power supply: 13,8 V.C.D • Consumption: 12 A. max. • Frontal backlit display • Weight: 1.5 kg • Dimensions: 245 x 158 x 48 mm
