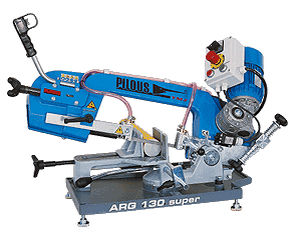

Band saw ARG 130 Super

horizontalfor metals

A universal band saw is appraised for general use in various workshops (work on locks, maintenance), at plants with machinery and in field installations. Robust framework of the machine is made of grey cast iron. In contrast to the basic version ARG 130, the feed into cut is performed by the weight of the arm with the possibility of regulating the feed rate by a special system of springs. When the cut is finished the band saw drive automatically switches off. For fast cutting of small cross-sections the system of springs can be set for manual feed into cut as well. Mechanical lock of the upper position of the band arm. Arm uplift is carried out manually. Modern concept of the band saw arm allows for large cutting ranges in upright and angular cuts. Continuous adjustment of the cutting angle within the range 90°–60° when the workpiece is clamped tight. Simple locking and adjusting of the desired cutting angle on the angle scale. Maximum cutting accuracy and saw band service life in this category of band saws. High-precision three-side hardmetal band saw guidance. Manufactured bearing of running wheels, tensioning wheel system and all rotary parts are the same as in big professional machines. Professional, noiseless and maintenance-free band drive is provided by an industrial electric motor with worm gearbox. The machine can be equipped with two types of motors. Single-phase motor (230 V) with universal saw band speed of 75 m/min. facilitates easy mains connection. Three-phase two-speed motor (400 V) with saw band speed of 40 and 80 m/min. is suitable for frequent cutting of full sections and thick-walled sections. The machine is equipped with a 250 mm workpiece stop.
