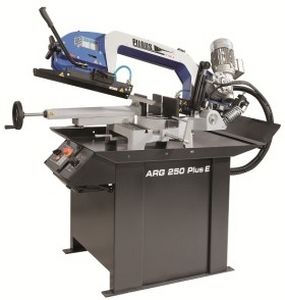

Band saw ARG 250 PLUS E

horizontalfor metals

Universal band saw is appraised for general use in continuous uninterrupted production plants and in workshops (work on locks, maintenance) as well. Industrial band 27 x 0.9 mm is manufactured in many versions and allows for cutting of wide range of materials, including stainless steel or tool steel. The band saw arm uplift is manual; the feed into cut is carried out by the weight of the arm, with the possibility of continuous regulation by the oil damper butterfly valve. When the cut is finished the band saw drive automatically switches off. To facilitate easy arm uplift the machine is equipped with adjustable tension springs that allow for setting of optimum force required for the arm uplift according to characteristics of the material to be cut. Vice system contributes to versatility of use by providing bilateral continuous setting of the cutting angle within the ranges 60° to the right and 45° to the left. The turntable rotates along with the saw band. Thanks to that the saw band does not cut into the loading surface of the vice. Robust machine framework composes of castings from grey cast iron and therefore ensures vibration absorption. Modern concept of the band saw arm allows for large cutting ranges in upright and angular cuts. Simple locking and adjusting of the desired cutting angle on the angle scale with stops fixed at 45°, 60° and 90°. Massive quick-clamping vice ensures easy and reliable material clamping. Large diameter running wheels and precise three-side hardmetal guiding ensure long service life of the band and cutting accuracy. Overdesign of running wheel bearings, tensioning wheel system and all rotary parts ensures long service life of the machine.
