Safety relay PNOZ yh1 2DI

DCplug-inmodular

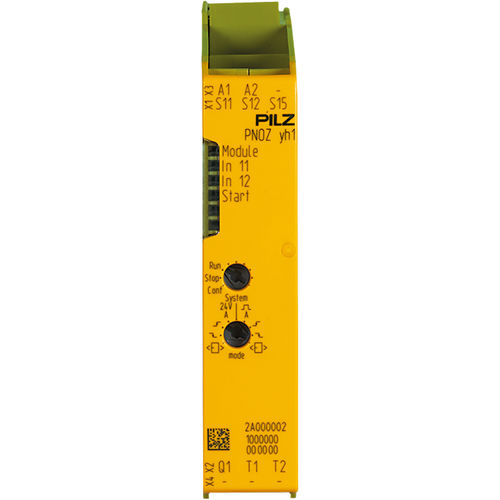

Head module of the modular safety relay myPNOZ, inputs: 2 for monitoring 1 safety function: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 1 signal output insemiconductor technology, UB = 24VDC, width: 17.5mm General data Approval - CE CCC UKCA cULus Listed TÜV EAC (Eurasian) Technical data Electrical data Purpose of U1 - System supply Supply voltage (V) - 24 V Type of supply voltage U1 - DC Inputs Number of digital inputs - 2 U input to EN 61131-2 Type 1 - 24 V DC Potential isolation input - No Test clock outputs Number of test pulse outputs - 2 Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - -10 - 55 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-78 Condensation permitted? - Not permitted Perm. operating height ASL - 5000 m EMC to standard ... - EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1 Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 15g Clearance & creepage dist. to - EN 60947-5-1 Overvoltage category - III Pollution degree clear.&creep. - 2 Protection type standard - EN 60529 Protection type, mounting - Protection type, housing - Terminal protection type - Times Simultaneity input circuit - ∞ Mechanical data Mounting position - any DIN-rail dimensions - 35 x 7.5 EN 50022 Housing material lower section - PC Housing material upper part - PC Connection terminal - Spring-loaded terminal Screw terminal Terminal style - plug-in Flex. cond. c/s AWG info - 24 - 12 AWG Height dimension - 98 mm Width dimension - 17.5 mm
