Description

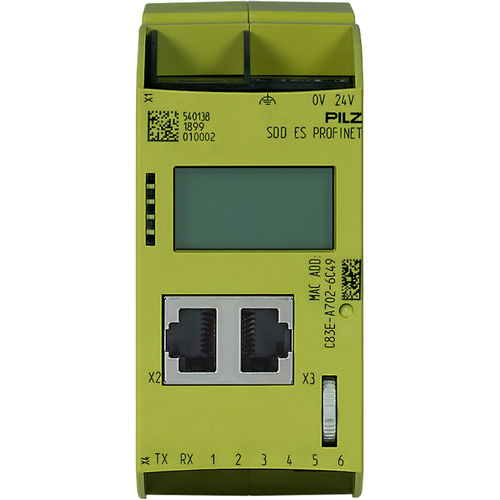

SDD (Safety Device Diagnostics), fieldbus module, standard, Profinet , 2 RJ45 ports, 6 digital inputs/outputs, plug-in connection terminals (not supplied with the unit). General data Approval - CE Technical data Electrical data Purpose of U1 - Module supply Supply voltage (V) - 24 V Type of supply voltage U1 - DC Power consumption DC - 2 W Inputs Number of digital inputs - 6 Semiconductor outputs Number of semicond. outputs - 6 S/C output short circuit proof - Yes Fieldbus interface Fieldbus interface - PROFINET Fieldbus device type - Slave Selectable transmission rates - 10 MBit/s 100 MBit/s Connection fieldbus - RJ45 Galv. isolation fieldbus - Yes Type of galvanic isolation - Functional insulation MODBUS Number of MODBUS interfaces - 8 Modbus connection - RJ45 Modbus operating modes - Auto-MDIX Autonegotiation Galv. isolation from Modbus - Yes Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - 0 - 55 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-30 EN 60068-2-78 Humidity rating - 90 % r. h. at 55 °C Condensation permitted? - Not permitted Perm. operating height ASL - 2000 m EMC to standard ... - EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-3 Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 15g Protection type standard - EN 60529 Protection type, mounting - Protection type, housing - Terminal protection type - Potential separation Potential isolation 1 between - Ethernet and system voltage Type of potential isolation 1 - Functional insulation
