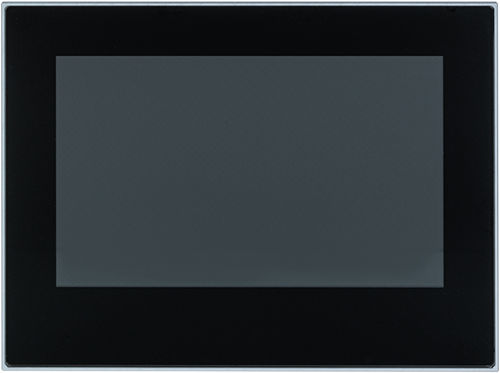

PMIvisu, diagnostic and operating terminal, 7", resolution 800 x 600pixel, capacitive touchscreen, TFT, RAM 4 GB, SSD 32 GB, 2 RJ45 port 1 Gbit/s, 1 USB host 3.0, 2 USB host 2.0, 1 HDMI port, 1 VGA port, capacitor-buffered real-time clock, 12 ... 30 V DC, 23 W, OS Windows 10 IOT, PASvisu Runtime installed and licensed, preinstalled software: PMI v8 Assistant, PASvisu Server and Client, PVIS OPC Server UA, PSS 4000 firmware (OPC Server UA).
General data
Approval - CE
UKCA
cULus Listed
EAC (Eurasian)
Technical data
Electrical data
Supply voltage (V) - 12 - 30 V
Type of supply voltage U1 - DC
Power consumption DC - 23 W
Display
Display diagonal - 7 Zoll
Display colour depth - 16.7 M
CPU
Processor type - X86
Processor clock speed - 2.0 GHz
RAM - 4 GB
Size of program memory (Flash) - 32 GB
Real-time clock present - Yes
USB interface
Number of USB host interfaces - 1 x USB 3.0
2 x USB 2.0
Ethernet interface
Ethernet transmission rate - 1 Gbit/s
CANopen interface
Number of Ethernet interfaces - 2
VGA interfaces
1 x VGA
Environmental data
Ambient temperature - 0 - 50 °C
Storage temperature standard - EN 60068-2-1/-2
Climatic suitability standard - EN 60068-2-78
Humidity rating - 0... 90% at 39°C(non-condens.)
Condensation permitted? - Not permitted
EMC to standard ... - EN 61000-6-2
EN 55032 ed.2 Class B 2015
Vibration to standard ... - EN 60068-2-6
Acc. shock to standard1 - 15g
Protection type standard - EN 60529
Protection type, housing -
Mechanical data
Height dimension - 193.8 mm
Width dimension - 143.8 mm
Depth dimension - 54.3 mm
Net weight - 1389 g
Gross weight - 1698 g
