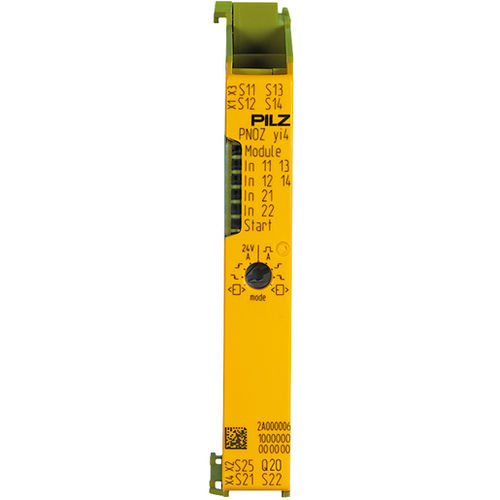

Relay expansion module PNOZ yi4 2DI T3C
I/Omodular

Relay expansion module - PNOZ yi4 2DI T3C - PILZ - I/O / modular
Relay expansion module - PNOZ yi4 2DI T3C - PILZ - I/O / modular
Add to favorites
Compare this product


Characteristics

Options
I/O, relay
Other characteristics
modular

Description

Expansion module of the modular safety relay myPNOZ, inputs: 6 for monitoring of 2-hand monitoring Type IIIC to EN 574 and another safety function (1/2-channel wiring with/without detection of shorts across contacts) AND-linked, width: 12.5mm General data Approval - CE CCC UKCA cULus Listed TÜV EAC (Eurasian) Technical data Electrical data Purpose of UINT1 - Module supply Source of internal voltage - Via head module Voltage type of UINT1 - DC Type of two-hand device to - EN 574 Type of two-hand device - III C Inputs Number of digital inputs - 6 U input to EN 61131-2 Type 1 - 24 V DC Potential isolation input - No Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - -10 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-78 Condensation permitted? - Not permitted Perm. operating height ASL - 5000 m EMC to standard ... - EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1 Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 15g Clearance & creepage dist. to - EN 60947-5-1 Overvoltage category - III Pollution degree clear.&creep. - 2 Protection type standard - EN 60529
