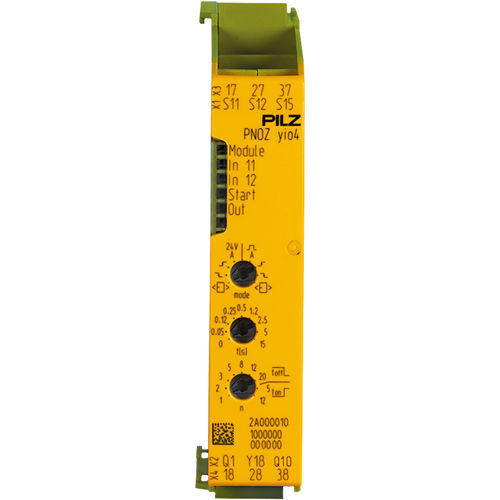

Relay expansion module PNOZ yio4 2DI 3NO t
I/Omodular

Relay expansion module - PNOZ yio4 2DI 3NO t - PILZ - I/O / modular
Relay expansion module - PNOZ yio4 2DI 3NO t - PILZ - I/O / modular
Add to favorites
Compare this product


Characteristics

Options
I/O, relay
Other characteristics
modular

Description

Expansion module of the modular safety relay myPNOZ, outputs: 3 n/o safe delay-on de-energisation switching relay contacts (t=0-300s), 1 signal output in semiconductor technology, inputs: 2 for monitoring 1 safety function: 1/2-channel wiring with/without detection of shorts across contacts, width: 17.5mm General data Approval - CE CCC UKCA cULus Listed TÜV EAC (Eurasian) Technical data Electrical data Purpose of UINT1 - Module supply Source of internal voltage - Via head module Voltage type of UINT1 - DC Permitted loads - Resistive Inductive Inputs Number of digital inputs - 2 U input to EN 61131-2 Type 1 - 24 V DC Potential isolation input - No Relay outputs Utilisation cat. AC/DC1 stand. - EN 60947-4-1 Voltage AC1 safety cont. - 240 V Max. current AC1 safety cont. - 6 A Voltage DC1 safety cont. - 24 V Max. current DC1 safety cont. - 6 A Utilisation cat. AC15/DC13sta. - EN 60947-5-1 Voltage AC15 safety cont. - 230 V Max. current AC15 safety cont. - 5 A Voltage DC13 safety cont. - 24 V Safety contacts: AC at UL - Safety contacts: pilot duty - B300, R300 Pilot duty R300 to UL - 24 V DC Relay contact material - AgCuNi Addit. contact details relay - + 0.2 µm Au Pot. isolation relay outputs - Yes Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - -10 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-78 Condensation permitted? - Not permitted
