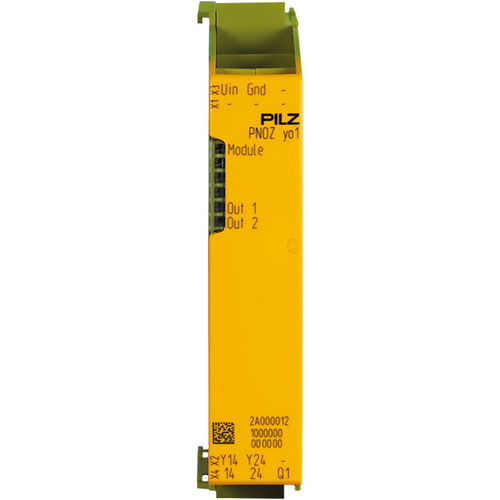

Relay expansion module PNOZ yo1 2SO
I/Omodular

Relay expansion module - PNOZ yo1 2SO - PILZ - I/O / modular
Relay expansion module - PNOZ yo1 2SO - PILZ - I/O / modular
Add to favorites
Compare this product


Characteristics

Options
I/O, relay
Other characteristics
modular

Description

Expansion module of the modular safety relay myPNOZ, outputs: 2 safe instantaneous switching semiconductor outputs, 1 signal output in semiconductor technology, width: 17.5mm General data Approval - CE CCC UKCA cULus Listed TÜV EAC (Eurasian) Technical data Electrical data Purpose of U2 - Supply of SC outputs Supply voltage 2 (V) - 12 - 24 V Type of supply voltage U2 - DC Tolerance of U2 - Potential isolation U2 - No Purpose of UINT1 - Module supply Source of internal voltage - Via head module Voltage type of UINT1 - DC Permitted loads - Resistive Inductive Capacitive Semiconductor outputs Potential isolation of S/C O - No S/C output short circuit proof - Yes Perm. load 1pole Output - ohmsch induktiv kapazitiv Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - -10 - 55 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-78 Condensation permitted? - Not permitted Perm. operating height ASL - 5000 m EMC to standard ... - EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1 Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 15g Clearance & creepage dist. to - EN 60947-5-1 Overvoltage category - III Pollution degree clear.&creep. - 2 Protection type standard - EN 60529
