EtherCAT communication module PNOZ m ES

FieldbusRJ452 port

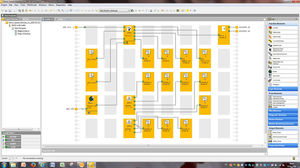

Configurable safe small controllers PNOZmulti 2, fieldbus module, EtherCAT. General data Approval - CE UKCA cULus Listed EAC (Eurasian) Technical data Electrical data Purpose of U1 - Module supply Supply voltage (V) - 24 V Type of supply voltage U1 - DC Power consumption DC - 0.9 W Potential isolation U1 - Yes Purpose of UINT1 - Module supply Source of internal voltage - Via base unit Voltage type of UINT1 - DC Fieldbus interface Fieldbus interface - EtherCAT Fieldbus device type - Slave Name of fieldbus protocol - CANopen over EtherCAT Selectable transmission rates - 100 MBit/s Connection fieldbus - RJ45 Galv. isolation fieldbus - Yes Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - 0 - 60 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-30 EN 60068-2-78 Condensation permitted? - Not permitted Perm. operating height ASL - 2000 m EMC to standard ... - EN 61131-2 Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 15g Clearance & creepage dist. to - EN 61131-2 Overvoltage category - II Pollution degree clear.&creep. - 2 Protection type standard - EN 60529 Protection type, mounting - Protection type, housing - Terminal protection type - Potential separation Potential isolation 1 between - Fieldbus and module Type of potential isolation 1 - Functional insulation Mechanical data Mounting position - horizontal on top hat rail DIN-rail dimensions - 35 x 7.5 EN 50022 Housing material lower section - PC Housing material front plate - PC Housing material upper part - PC
