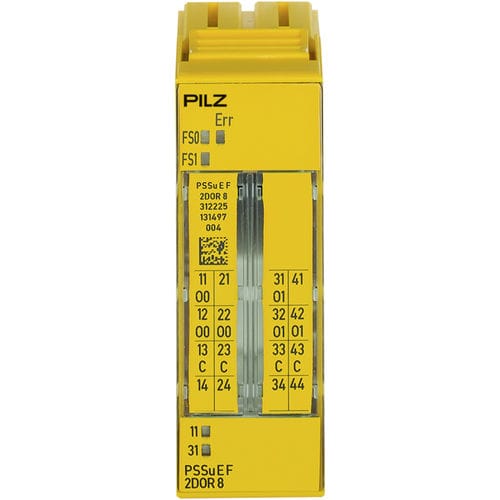

PSSu, electronic module, failsafe, digital inputs and outputs, 2outputs, relay contacts, 8 A, N/O, potential-free.
General data
Approval - CE
UKCA
cULus Listed
KOSHA
TÜV
EAC (Eurasian)
Application range - Fail-safe
Technical data
Electrical data
Permitted loads - ohmsch
induktiv
Relay outputs
Number of relay outputs - 2
Utilisation cat. AC/DC1 stand. - EN 60947-4-1
Voltage AC1 safety cont. - 250
Max. current AC1 safety cont. - 8
Voltage DC1 safety cont. - 24
Max. current DC1 safety cont. - 8
Utilisation cat. AC15/DC13sta. - EN 60947-5-1
Voltage AC15 safety cont. - 230
Max. current AC15 safety cont. - 3
Voltage DC13 safety cont. - 24
Safety contacts: AC at UL - 250 V AC G.U. (same polarity)
Safety contacts: pilot duty - B300, R300
Typ. process time relay o/p ON - 20 - 60 ms
Relay contact material - AgCuNi
Addit. contact details relay - + 0,2 µm Au
Pot.isol. RlCont - Uint1 - 4900 V (sich. Trennung)
Pot.isol. RlCont to U2 - 4900 V (sich. Trennung)
Pot.isol. RlCont1 to CRail - 3050 V (Basisisolierung)
Pot.isol. RlCont1 to RlCont2 - 4900 V (sich. Trennung)
Environmental data
Climatic suitability to ... - EN 60068-2-30
EN 60068-2-2
EN 60068-2-1
EN 60068-2-78
EN 60068-2-14
Ambient temperature standard - EN 60068-2-14
Ambient temperature - 0
Ambient temp. with UL - 60 °C
Storage temperature standard - EN 60068-2-1/-2
