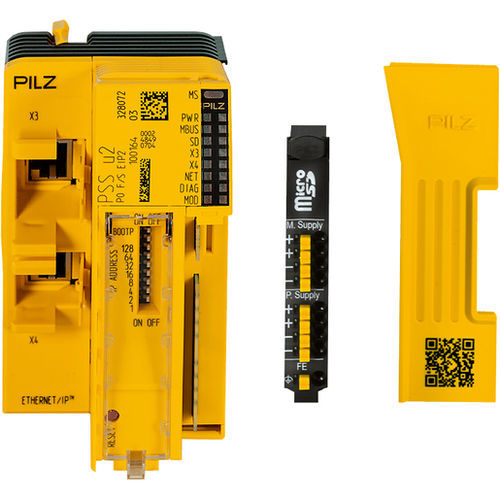

EtherNet/IP communication module PSS u2 P0 F/S EIP2

RJ45

PSS u2, head module, performance index P0, control system I/O, failsafeand standard, 2 RJ45 ports, EtherNet/IP adapter with CIP Safety, supports BOOTP, integral power supply, infeed module supply 24 V DC 1.2 A, infeed periphery supply 24 V DC 8 A, potential isolation, connection functional earth, for microSD card integrated in the terminal block, with protective plate. General data Approval - CE cULus Listed TÜV Application range - Standard/failsafe Technical data Electrical data Purpose of U1 - Module supply Supply voltage (V) - 24 24 Type of supply voltage U1 - DC Power consumption DC - 28.8 Potential isolation U1 - Yes Purpose of U2 - Periphery supply Supply voltage 2 (V) - 24 24 Type of supply voltage U2 - DC Tolerance of U2 - -30 %/+25 % Potential isolation U2 - Yes Removable storage media Plug-in memory - µSD card EtherNet/IP Adapter Device type EtherNet/IP - Adapter Supported EtherNet/IP RPI - 1 ... 3200 ms EtherNet/IP certification - ODVA Trans. rate EtherNet/IP - 100 MBit/s CIP Safety Supported CIPSafety RPI - 10 … 3200 ms Environmental data Climatic suitability to ... - EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14 Ambient temperature standard - EN 60068-2-14 Ambient temperature - 0 60 Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-78 Humidity rating - 93 % r. h. at 40 °C Condensation permitted? - Not permitted Perm. operating height ASL - 2000 m EMC to standard ... - EN 61131-2 (Zone B) Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 150 m/s²
