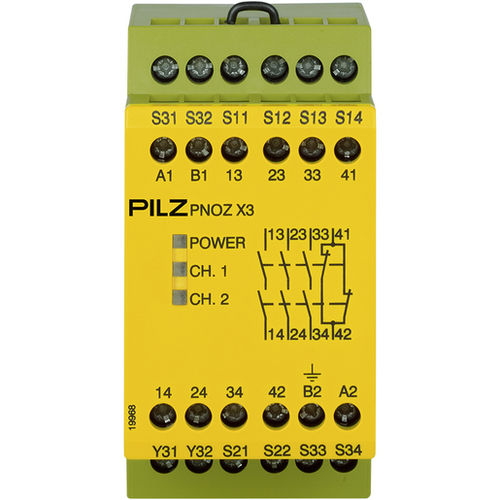

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O, 1 N/C,1 SC, automatic/monitored start, UB 230 V AC/24 V DC, width: 45 mm, screw terminals integrated, monitoring of E-STOP, safety gates.
General data
Approval - CE
CCC
cULus Listed
KOSHA
EAC (Eurasian)
TÜV
Technical data
Electrical data
Type of supply voltage U1 - AC
Type of supply voltage U2 - DC
Tolerance of U2 -
Inputs
Number of inputs - 2
Semiconductor outputs
Number of semicond. outputs - 1
Tolerance ext. volt. DC S/C - -20 %/+20 %
Utilisation cat. to EN 60947-1 - DC-12
Relay outputs
Utilisation cat. AC/DC1 stand. - EN 60947-4-1
Utilisation cat. AC15/DC13sta. - EN 60947-5-1
Safety contacts: pilot duty - B300, R300
Relay contact material - AgSnO2
Addit. contact details relay - + 0.2 µm Au
