Threaded adapter C1000059
femalePPTPU

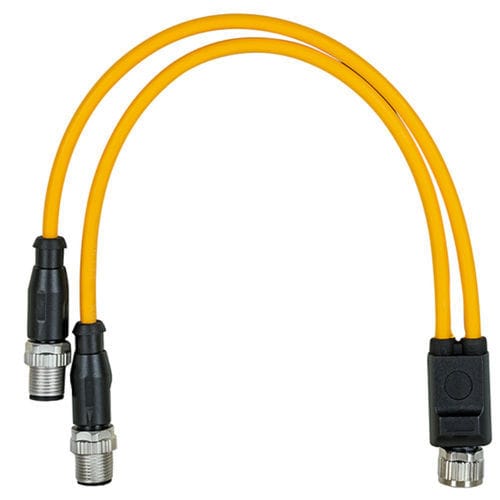

Threaded adapter - C1000059 - PILZ - female / PP / TPU
Threaded adapter - C1000059 - PILZ - female / PP / TPU
Add to favorites
Compare this product


Characteristics

Connector type
threaded, female
Material
PP, TPU, PUR
Other characteristics
straight
Diameter

4.85 mm
(0.191 in)

Length

0.2 m
(0'07" )

Description

Y adapter for connecting PSEN ml b or PSEN ml s to PDP67 PN 6FDI 6FDIO 2FDOTP, 1 x 8-pin M12 female connector, straight, A-coded on 2 x 5-pin M12 male connector, straight, A-coded Typ. conductor resistance K1 - Typ. conductor resistance K1 - Environmental data Pollution degree clear.&creep. - 2 Protection type, housing - Mechanical data Connector type 1 - 5-pin M12 male connector Shape of connector type 1 - straight Coding of M12 connector 1 - A coded Connector type 2 - 5-pin M12 male connector Shape of connector type 2 - straight Coding of M12 connector 2 - A coded Connector type 3 - 8-pin M12 female connector Shape of connector type 3 - straight Coding of M12 connector 3 - A coded Matl threaded ring conn 1 - GD-Zn, Ni Matl threaded ring conn 2 - GD-Zn, Ni Material threaded ring conn 3 - GD-Zn, Ni Housing material connector 3 - TPU, UL 94 HB Contact surfaces material 1 - Ni b / Au 0.2 gal. Contact surfaces material 2 - Ni b / Au 0.2 gal. Contact surfaces material 3 - Ni b / Au 0.2 gal. Seal material - FPM Material of pins - CuZn Material of sockets - CuZn Cable material K1 - Cu Cable material K2 - Cu Insulation material cable K1 - PP (9Y) Insulation material cable K2 - PP (9Y) Cable type K1 - 4Li9Y11Y Cable type K2 - Colour cable insulation 1 - Signal yellow RAL1003 Colour cable insulation 2 - Signal yellow RAL1003 Housing colour - Black Material of cable insulation 1 - PUR Material of cable insulation 2 - PUR Trailing capability of cable 1 - yes Trailing capability of cable 2 - Yes Bend radius (when laying) K1 - 7.5 x Ø Bend radius (when laying) K2
