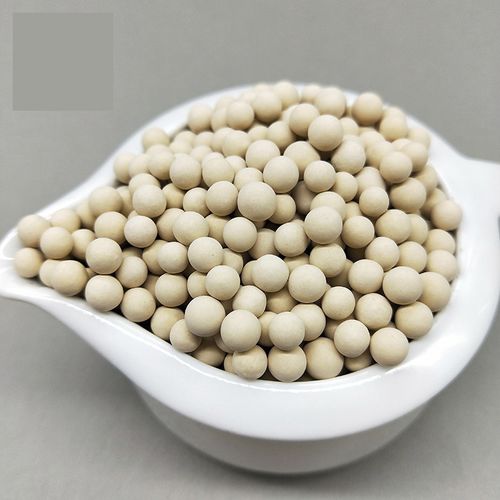

Metal sieve 3A

Molecular Sieve type 3A is an alkali metal alumino-silicate; it is the potassium form of the type A crystal structure. Type 3A has an effective pore opening of about 3 angstroms (0.3nm). This is large enough to allow in moisture, but excludes molecules such as unsaturated hydrocarbons which can potentially form polymers; and this maximizes lifetime when dehydrating such molecules Typical Chemical Formula 0.4K2O  0.6Na2O  Al2O3  2.OSiO2  4.5H2O SiO2 : Al2O3 ≈2 Typical Application ● Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien) ● Cracked Gas Drying ● Drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required. ● Drying of highly polar compounds, such as methanol and ethanol ● Drying of liquid alcohol ● Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled. ● Drying of refrigerants Regeneration Molecular sieve Type 3A can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes. To remove moisture from a 3A molecular sieve, a temperature of 200-230°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process. Size 3A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6”, 3.2”.
