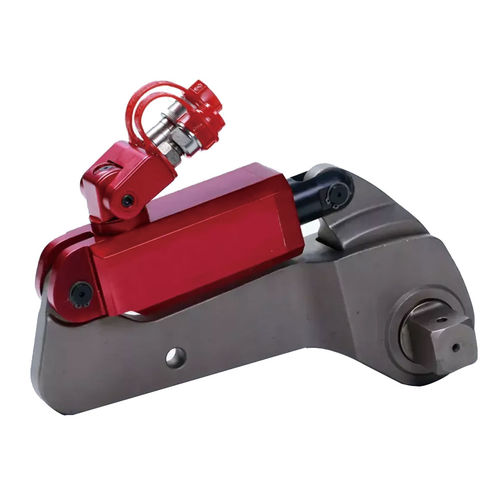

Hydraulic torque wrench BXTD series

steelaluminumtitanium

1) The BXTD series square drive hydraulic torque wrench is made of aluminum-titanium alloy and alloy steel. The wrench has higher strength, better toughness, and its service life has been greatly improved. Its quality is beyond doubt. 2) The BXTD square drive torque wrench adopts a precise and small ratchet design, and has no non-return structure. It will not be locked due to the twisting of the bolt under the condition of the maximum working pressure of 70MPa. The swivel joint can make it rotate 360°X180° without dead angle, and it can be operated more freely in any small space. 3) The BXTD square torque wrench uses a compact one-piece reaction arm design, which makes the wrench less eccentric and more durable. Its transmission parts are few, the structure is simple, which is easy to maintain and repair. 4) BXTD square drive hydraulic wrench has 13 models from 485-280000Nm. It is the product with the most complete models and the widest bolt coverage among similar products on the market. Especially for the pre-tightening of high-torque bolts such as hydraulic turbine rotors, BXTD is the most suitable choice. The torque output is constant, and the repeatability is ± 3%. A variety of drive shafts can be replaced, and an extended reaction arm can also be customized according to the site space. 5) The BXTD square drive wrench is double-packed, first in an aluminum-plastic box and then in a wooden box. TorcStark stocks a large number of BXTD wrenches, which can be shipped immediately. The transportation time depends on the transportation method, and the shortest time is 3-5 days. TorcStark provides a one-year product warranty.
