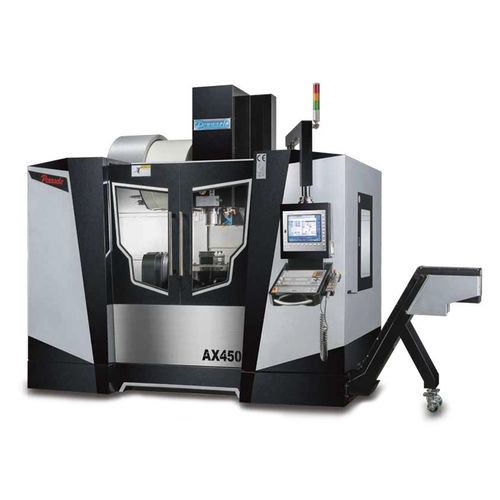

5-axis CNC machining center AX450

verticalwith rotary tilting table24 tools

The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. The spindle head elevation employs a pneumatic type balance system to minimize the spindle head vibration during moving. The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy. Pinnacle AX320/ AX450 are proven to be super machines for high efficiency and accuracy. Features A Axis Tilt 220° (±110°) C Axis Rotary 360° ISO40 Spindle Taper X, Y & Z Axis Linear Way Ruggedly Constructed Throughout to Provtde Lifetime Accuracy Year After Year The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB. Roller type linear ways on X, Y, Z axis increased stability. X, Y, Z axis are transmitted with class C3, Ø40mm ball screws. COOLANT THROUGH BALL SCREW (STANDARD) Coolant through ball screws on X, Y axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse. Pneumatic Balance System The Z-axis is pneumatic counter-balanced via high response pneumatic cylinders. Plus an air reservoir tank to boost the balancing performance, ensuring fast and stable Z-axis movement, giving high surface finish. Cooling System To Spindle The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy. Rotary Table diameter Ø320 / Ø450mm Positioning accuracy, A/C-axis: 15"/10" Repeatability accuracy, A/C-axis: 10"/8" Accessories Air blast through spindle
