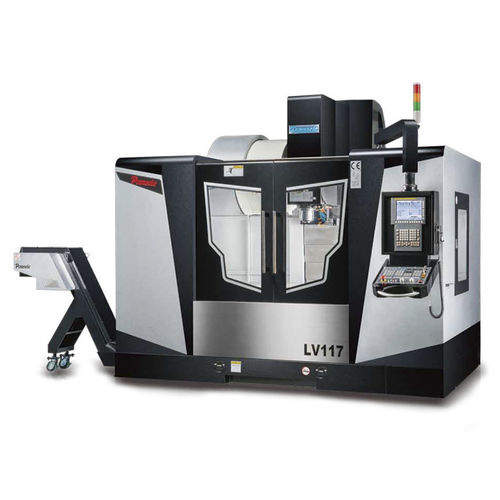

3-axis CNC machining center LV series

verticalISO 5024 tools

When jobs call for highly efficient machining and when outstanding accuracy is critical, a Pinnacle linear way series vertical machining center is the perfect solution. The three axes move on linear guideways that minimize friction while providing high accuracy of positioning and repeatability. This series are not only suitable for larg-range production line application. It is also ideal for smaller factories and machine shops. If you are serious about increasing machining productivity and profits, the Pinnacle linear way series LV can really help you. Features X, Y & Z Axis Linear Way 4 Slideway on Base ASSURES HIGH QUALITY MACHINING Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life. The spindle is a cartridge-type. The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment. Chips Flushing Nozzles Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation. Couplings Directly connected with ball screw and AC servo motors, the high precision flexible couplings offer the best rigidity and keeps the accuracy of axial linear assembly under high speed movement. Coolants Jets Around Spindle Improved cooling efficiency on workpiece. Automatic Lubrication System The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings. Control System The centralized control panel employs a touch sensing screen for user-friendly operation.
