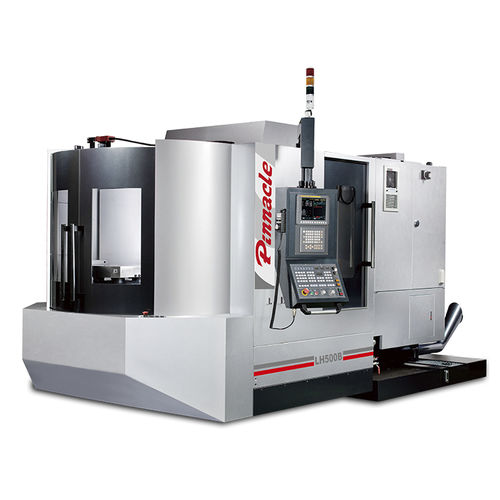

3-axis CNC machining center LH500B

horizontalcolumn typewith rotary table

500 x 500 Table x 2 Index Table 0.001° / (1°) Automatic pallet change ISO40 Spindle Taper The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB. The structural parts are tempered for stress relief that ensures deformation-free performance year after year. X, Y, Z axis are mounted with roller type linear ways, exhibiting extra high rigidity and loading capacity. Oversized column structure dramatically increases machining stability. AUTOMATIC PALLET CHANGE Swing type automatic pallet change features stable construction and smooth change motion. Pallet change is fast-accomplished in only 8 seconds. Pallet positions on oversized cones that guarantee high positioning accuracy. HEAVY-CUTTING RESITANCE The rotary table is designed with hydraulic-expansion circular locking mechanism. During locking, the complete circumference is completely tightened. This results in higher rigidity and increased heavy cutting resistant capability. COOLING THROUGH SPINDLE (OPTIONAL) Coolant circulates through spindle offer a direct cooling effect on tools, removing heat that occurs during machining. Combines with filter tank system (optional). TWO SCREW TYPE CHIP CONVEYORS ON BASE There are two screw type chip conveyors provided at right and left side of the base. During cutting, the chips are delivered through these chip conveyors for exhausting chips outside of the machine. CHAIN TYPE CONVEYOR (OPTIONAL) The chip conveyor is available to be mounted at the backside of the machine. It removes chips efficiently. The magazine is driven by a precision cam, featuring fast and accurate tool positioning.
