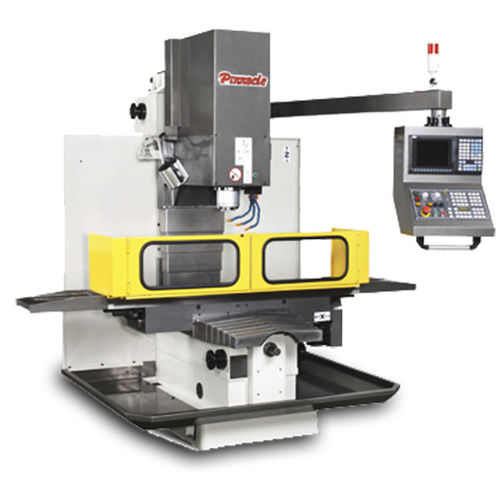

3-axis CNC milling machine B3KverticalBT 4020 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 20 tools, 16 tools
- Applications
- heavy-duty
- Other characteristics
- high-precision, high-rigidity, high-power
- X travel
1,020 mm
(40.16 in)- Y travel
460 mm
(18.11 in)- Z travel
500 mm
(19.69 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
5.5 kW
(7.48 hp)- Work feed X-axis
10 m/min
- Work feed Y-axis
10 m/min
- Work feed Z-axis
10 m/min
- Table load capacity
300 kg
(661 lb)- Tool weight (max)
8 kg
(17.6 lb)- Weight
2,700 kg
(5,952.48 lb)- Overall length
2,130 mm
(83.9 in)- Overall width
1,930 mm
(76 in)- Overall height
2,500 mm
(98.4 in)
Description
60" x 12" working table with ground T-slots.
Standard Accessories
Cooling pump system
Auto lubrication system
Way chip protectors
Chip tray
Tool box with tools
Halogen worklight
Electric control cabinet with operation panel
Control system
Mitsubishi M80
FANUC Oi-MD
FAGOR 8055iFL
HEIDENHAIN TNC620
SIEMENS 828D
