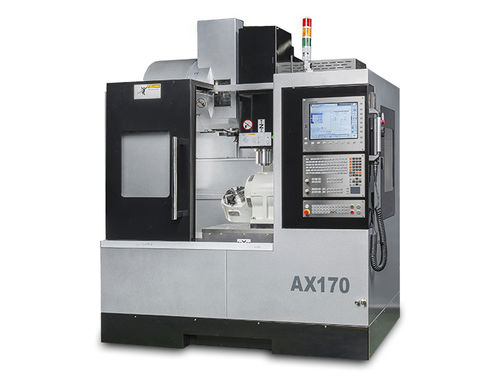

5-axis CNC machining center AX170

verticalwith rotary tilting tableHSK A-63

The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. A/C adopt DD motor ensure the high accuracy and efficient. The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy. Features A Axis Tilt 240° (-120°/+120°) C Axis Rotary 360° ISO40 Spindle Taper X, Y & Z Axis Linear Way Rigid, Stable, Accurate Ruggedly Constructed Throughout to Provtde Lifetime Accuracy Year After Year The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB. 25mm Roller type linear ways on X, Y, Z axis increased stability. X, Y, Z axis are transmitted with class C3, Ø28mm ball screws. Hollow Ball Screw With Cooling System Oil cooling through ball screws on X, Y, Z axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse. Cooling System To Spindle The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy. Rotary Table diameter Ø170 Table rotation and tilting are driven by DD motor A/C-axes rotary speed: 60/200rpm Rositioning accuracy, A/C-axis: 5"/5" Repeatibility accuracy, A/C-axis: 4"/4" Accessories Air Blast Air Blast for Workpiece 3 Axes Telescopic Covers Full Splash Guard Auto Lubrication System A-Axis Rotary Encoder C-Axis Rotary Encoder Working Lamp Operation Status Light Z axis pneumatic balance system Cooling System Air gun / water gun MPG handwheel Heat exchanger RS-232 Interface
