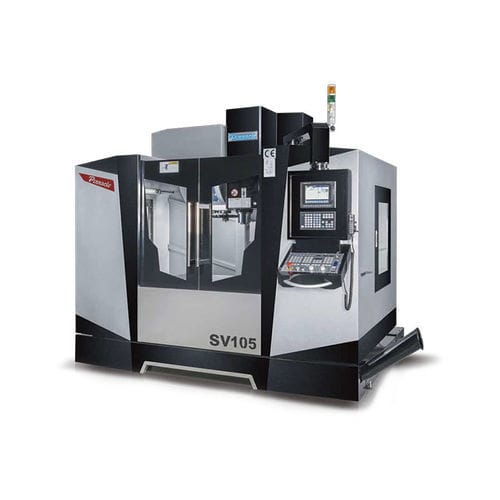

3-axis CNC machining center SV series

verticalfor heavy-duty machininghigh-performance

Now you can get the right VMC's with the right features for extra heavy-duty machining, superior stability and excellent rigidity. Pinnacle box way SV series are quality constructed throughout for maximum performance dependability - year after year. If you expect a VMC that will provide higher machining efficiency to reduce production costs, then consider placing a dependable, heavy-duty Pinnacle SV series in your production line. Features ISO40 Spindle Taper Spindle Speed 8,000 rpm X, Y & Z Axis Box Way Rugged Construction Assures Optimum Rigidity and Stability. The major structural parts are manufactured from high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB. Box ways on the three axes. Way surfaces are hardened to over HRC55 with over 2 mm depth. Three axes are equipped with class C3 and 36mm (SV85/SV105) and 40mm (SV116/SV126)diameter precision ball screws. ASSURES HIGH QUALITY MACHINING Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed. Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life. The spindle is a cartridge-type. The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment. Chips Flushing Nozzles Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.
