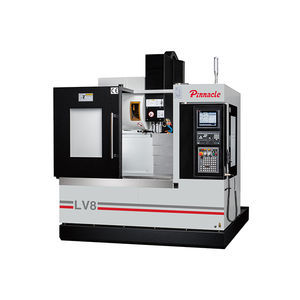

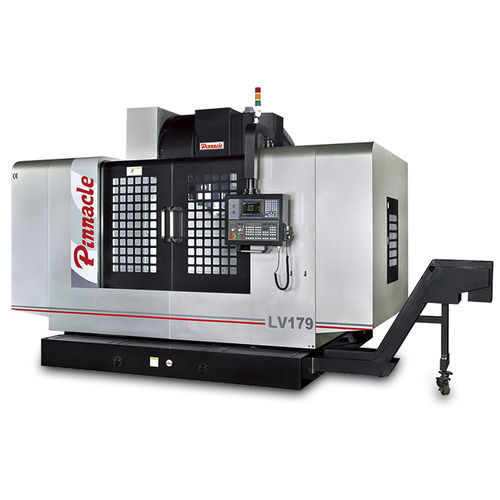

3-axis CNC machining center LV series

verticalISO 5024 tools

Now you can gWhen jobs call for highly efficient machining and when outstanding accuracy is critical, a Pinnacle linear way series vertical machining center is the perfect solution. The three axes move on linear guideways that minimize friction while providing high accuracy of positioning and repeatability. This series are not only suitable for larg-range production line application. It is also ideal for smaller factories and machine shops. If you are serious about increasing machining productivity and profits, the Pinnacle linear way series LV can really help you. Features X,Y Axis Linear Way Z Axis Box Way (Linear Way is Option) 4 Slideway on Base The major structural parts are manufactured from high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB. Roller guideway on the three axes ensure smooth movement. Three axes are equipped with class C3 and 50mm diameter precision ball screws. Counter-balance weight moves on a guide shaft for added stability and straightness accuracy. COUNTER WEIGHT BALANCE SYSTEM Exclusively designed counter weight balance system. The counter-balance weight moves on a guide shaft to assure movement straightness accuracy. There is no vibration in the forward/backwards and in the right/left directions. This creates superior workpiece surface accuracy to meet various mold machining requirements. Patented in Taiwan and China. ASSURES HIGH QUALITY MACHINING Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life. The spindle is a cartridge-type.
