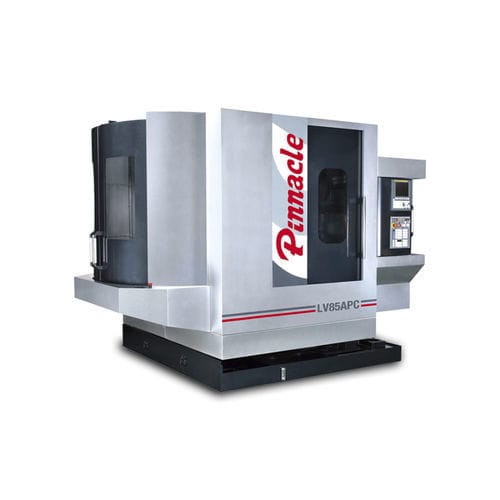

3-axis CNC machining center LV85APCverticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools, 30 tools
- Other characteristics
- high-speed, high-performance, high-productivity, direct-drive, high-power, high-rigidity, with automatic tool changer
- X travel
850 mm
(33.46 in)- Y travel
520 mm
(20.47 in)- Z travel
560 mm
(22.05 in)- Rotational speed
Max.: 15,000 rpm
(94,248 rad.min-1)Min.: 40 rpm
(251 rad.min-1)- Power
5.5 kW, 7.5 kW
(7.48 hp, 10.2 hp)- Work feed X-axis
32 m/min
- Work feed Y-axis
32 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
300 kg
(661 lb)- Tool weight (max)
8 kg
(17.6 lb)- Weight
6,800 kg
(14,991.43 lb)- Overall length
3,300 mm
(129.9 in)- Overall width
4,000 mm
(157.5 in)- Overall height
2,900 mm
(114.2 in)
Description
Pinnacle LV-85APC Machining Center, with excellent features, provides perfect machine results and enhanced productivity when it works in conjunction with automatic pellet changer. Hydraulic rotating mechanism features fast, stable and smooth operations. Thinks to its outstanding design, the APC provides best performance over lifetime. When you consider increased efficiency and decreased cost, Pinnacle LV-85APC Machining Center is truly the best choice.
Features
ISO40 Spindle Taper
Spindle Speed 8,000 rpm, 10,000 rpm (option)
X, Y & Z Axis Linear Way
Accessories
Air blast through spindle
Air blast for workpiece (nose)
Coolant flushing system
Full splash guard
Centralized automatic lubrication system
Working lamp
Operation status light
Cooling system
Air gun and water spray-gun
MPG handwheel
Heat exchanger
RS-232 Interface
Rigid tapping
Spindle oil cooler
Adjusting tools and box
Leveling bolts and pads
Operation and programming manual
Control System
MITSUBISHI M80 / M830
FANUC 0i-MF / 31i-MB
HEIDENHAIN TNC620 / TNC640
SIEMENS 828D / 840D
FAGOR 8055i Plus / 8060FL / 8060
