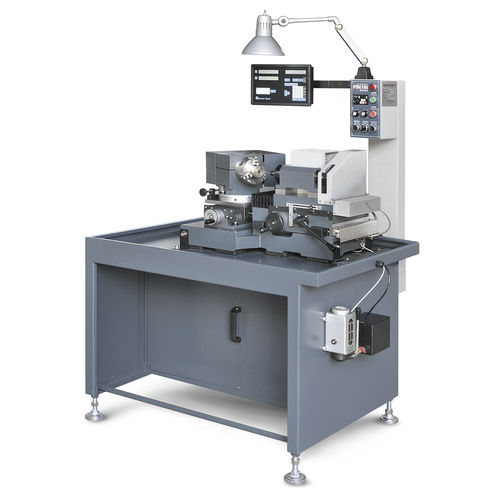

Internal cylindrical grinding machine HID4-SPworkpiececonventional2-axis
Add to favorites
Compare this product
Characteristics
- Type
- internal cylindrical
- Applications
- workpiece
- Control type
- conventional
- Number of axes
- 2-axis
- Spindle speed
Max.: 50,000 rpm
(314,159 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
1 ch
(1 hp)- X travel
90 mm
(3.54 in)- Y travel
50 mm
(1.97 in)
Description
●Workpiece is clamped with a 4-inch-three-jaw chuck.
●Workpiece diameter can be clamped ∅1-∅95mm.
●X, Y axis feeds are manually operated.
●The grinding wheel spindle running is controlled through a frequency inverter.
●Variable speed change for the wheel spindle and the work spindle.
●Double "V" slideways are hardened. Slidesurfaces are presicely ground, coated with Turcite-B and hand scraping.
