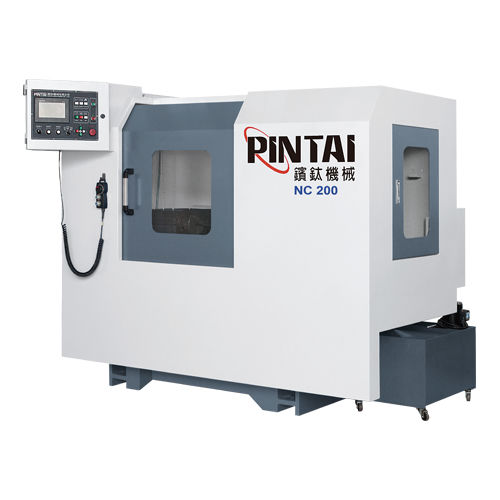

Internal cylindrical grinding machine NC-200workpieceNC
Add to favorites
Compare this product
Characteristics
- Type
- internal cylindrical
- Applications
- workpiece
- Control type
- NC
- Spindle speed
Max.: 30,000 rpm
(188,496 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
2 ch
(2 hp)- X travel
500 mm
(19.69 in)- Y travel
250 mm
(9.84 in)
Description
Equipped with a NC controller in combination with the use of touch-screen permits easy operation.
●Workpiece is clamped securely by a 3-jaw chuck allowing for rapid feed.
●Rugged machine structure assures maximum stability during grinding.
●X，Y axis automatic feeds are driven by individual servo motors.
●Variable speed change for the wheel spindle and the work spindle.
●High wheel speed significantly increases machining efficiency and improves surface finish.
●Double "V" slideways are hardened. Slides surfaces are precisely ground, coated with Turcite-B and hand scraping.
●Three-Color warning lamp indicates the current operation condition.
