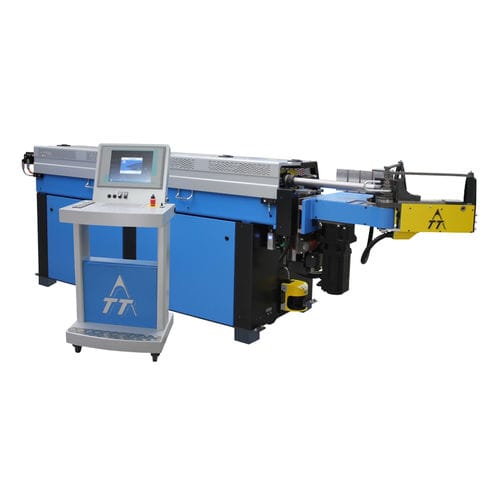

Servo-electric bending machine TUBOTRON 25 MR

pneumatictubehorizontal

FULLY AUTOMATIC AND FLEXIBLE! The CNC pipe bending machines of the TUBOTRON series fulfill the highest quality demands regarding design, performance and fabrication. They are perfectly suited for series production as well as for flexible single production of pipe bending parts. CNC PIPE BENDING MACHINE DISCOVER THE TUBOTRON PIPE BENDING MACHINE By using the most advanced control techniques even complex pipe shapes can be bent at minimum cycle times and highest precision. The bending machines are operated via SIMATIC Panel PC or SIMATIC Operator Panel. An interface for remote maintenance of the machine control is standard. Basic equipment and features Compact and exposed bending head with servo-electric horizontal and vertical axes allows for multi-radii bending (stack tooling) Programmable sequence control with menu-driven user guidance via SIMATIC Touch PC on mobile control board Servo-electric bending drive Pneumatic pipe clamping (mechanical fine adjustment) Pneumatic pressure die positioning (mechanical fine adjustment) Servo-electric pipe feed and rotation Pneumatic long-neck collet chuck allows for positioning of the pipe in the pressure die area, with pipe re-gripping functionality Servo-electric and anticipated mandrel retraction Automatic minimum quantity mandrel lubrication Pipe and mandrel support Interface for remote maintenance of the machine control Additional equipment, options and accessories Follower-type pressure die (linear guiding) Anti-buckling system for the mandrel rod Centralized lubrication system PIPEFAB BE pipe bending software
