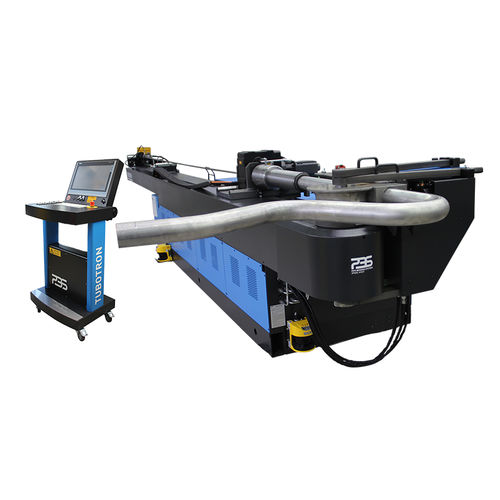

Hydraulic bending machine TUBOTRON 90 (S)
servo-electrictubeCNC

Hydraulic bending machine - TUBOTRON 90 (S) - Pipe Bending Systems GmbH & Co.KG - servo-electric / tube / CNC
Hydraulic bending machine - TUBOTRON 90 (S) - Pipe Bending Systems GmbH & Co.KG - servo-electric / tube / CNC
Hydraulic bending machine - TUBOTRON 90 (S) - Pipe Bending Systems GmbH & Co.KG - servo-electric / tube / CNC - image - 2
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, servo-electric
Product handled
tube
Control
CNC, automatic
Other characteristics
mandrel, precision, mobile
Bending capacity

Max.: 89 mm
(3.5 in)

Min.: 0 mm
(0 in)

Bending radius

Max.: 250 mm
(9.84 in)

Min.: 0 mm
(0 in)

Bending length

Max.: 6,000 mm
(236 in)

Min.: 3,000 mm
(118 in)

Weight

5,600 kg
(12,346 lb)

Total power

26 kW
(35.4 hp)

Description

FULLY AUTOMATIC AND POWERFUL! The CNC pipe bending machines of the TUBOTRON series fulfill the highest quality demands regarding design, performance and fabrication. They are perfectly suited for series production as well as for flexible single production of pipe bending parts. CNC PIPE BENDING MACHINE DISCOVER THE TUBOTRON PIPE BENDING MACHINE By using the most advanced control techniques even complex pipe shapes can be bent at minimum cycle times and highest precision. The bending machines are operated via SIMATIC Panel PC or SIMATIC Operator Panel. An interface for remote maintenance of the machine control is standard. Basic equipment and features Exposed bending head for maximum bending space Programmable sequence control with menu-driven user guidance via SIMATIC Touch PC on mobile control board Hydraulic bending drive Hydraulic pipe clamping (power programmable) Hydraulic pressure die positioning (distance programmable) Follower-type pressure die (linear guiding) Pressure die assist (power programmable) Servo-electric pipe feed and rotation Hydraulic long-neck collet chuck allows for positioning of the pipe in the pressure die area, with pipe re-gripping functionality Foot switch for hydraulic collet chuck Hydraulic and anticipated mandrel retraction Automatic minimum quantity mandrel lubrication Pipe and mandrel support Interface for remote maintenance of the machine control Oil cooler
