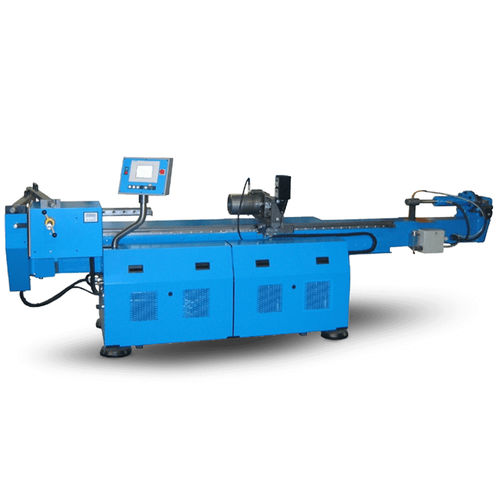

Hydraulic bending machine TUBOBEND 90 S

pressure pipepipe-endautomatic

TUBOBEND - PIPE BENDING MADE EASY The bending axis of the semi-automatic TUBOBEND pipe bending machines is automated, whereas pipe feeding and slewing between two bows have to be executed manually. PIPE BENDING MADE EASY! The machines are mainly used in the individual and small series production of tube bending parts, for adaptation and maintenance work or as mobile assembly machines (e.g. on construction sites). stoppers for the length and ro-tation positions facilitate the work in the production of small series, since the tube can be precisely fixed on the respective starting posi-tion for the next bend. A 2‑axis measuring system with digital display of the current position values for the feed and rotation axis as well as many other features are optionally available. Basic equipment and features Exposed bending head for maximum bending space Electronic SIMATIC Touch Panel control with user guidance, automatic sequencing of the data records and storage capability for 100 bending programs Hydraulic pipe clamping with adjustable clamping pressure Hydraulic pressure die positioning (mechanical fine adjustment) Follower-type pressure die (linear guiding) Hydraulic mandrel retraction Additional equipment, options and accessories Positioning device for pipe length and rotation, incl. 3‑jaw chuck Hydraulic collet chuck Adjustable bending speed Pressure die assist Automatic pressure die retraction Length and rotation measuring system with digital display Anticipated mandrel retraction for optimizing the bend quality Mandrel lubrication device Remote control or foot switch for bending and clamping function Mobile control board
