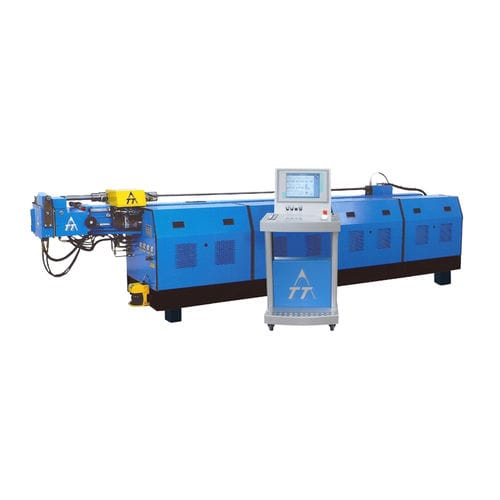

Hydraulic bending machine TUBOTRON 30

servo-electrictubeCNC

FULLY AUTOMATIC AND FLEXIBLE! The CNC pipe bending machines of the TUBOTRON series fulfill the highest quality demands regarding design, performance and fabrication. They are perfectly suited for series production as well as for flexible single production of pipe bending parts. INSIGHT TUBOTRON 30 CNC BENDING MACHINE DISCOVER THE TUBOTRON PIPE BENDING MACHINE By using the most advanced control techniques even complex pipe shapes can be bent at minimum cycle times and highest precision. The bending machines are operated via SIMATIC Panel PC or SIMATIC Operator Panel. An interface for remote maintenance of the machine control is standard. Basic equipment and features Compact and exposed bending head for maximum bending space Programmable sequence control with menu-driven user guidance via SIMATIC Touch PC on mobile control board Hydraulic bending drive Hydraulic pipe clamping (power programmable) Hydraulic pressure die positioning Servo-electric pipe feed and rotation Hydraulic long-neck collet chuck allows for positioning of the pipe in the pressure die area, with pipe re-gripping functionality Foot switch for hydraulic collet chuck Hydraulic and anticipated mandrel retraction Automatic minimum quantity mandrel lubrication Pipe and mandrel support Interface for remote maintenance of the machine control Oil cooler
