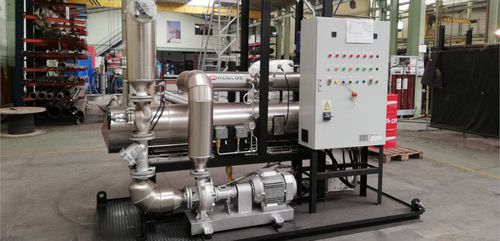

Thermal fluid boiler CE-108

electrichorizontalindustrial

Approved and CE marked according to European Directive 2014/68 / EU Designed and manufactured according to Euronorm EN – 13445 Design pressure: 8 bar Test pressure: 16 bar Material: Single element body made of carbon steel with a pumped bottom Approximate measurements (mm): ~ 3000 L x 1000 W x 2000 h (including cabinet) An electrical resistance Stages: 5 Warm-up Stages Type: Low density (3.5 W / cm2) in order to avoid oil coking Provided with a connection box separated from the heater body Submerged length: 2500 mm Extension: 150 mm Material: AISI-321 stainless steel forks, DN-250 PN25 carbon steel flange P-250-GH DIN2527 Line voltage: 3Ph 400V 50 Hz Electrical installation included Safety (solidarity and mounted on the boiler) 1x Differential pressure switch 1x Pressure switch for maximum pressure 2x Ø 63 0-6 bar pressure gauges with glycerin, expansion rods and shut-off taps 1x Safety valve PN40. Flange connection DN-20. Maximum pressure 7.5 bar 3x PT-100 type temperature probes 3x Thermowells for temperature probes Electrical installation An electrical cabinet (solidarity and mounted on the boiler) Control: Through 3 microprocessor regulators Box: Rittal RAL 7035 Designed and built according to UNE-EN 60439-1 / UNE-EN 60204-1 / EN 50081 Includes emergency stop Regulation through contactors, except one stage that will be regulated with three thyristors (SSR) Line voltage: 3Ph 400V + N 50 Hz Electrical installation: Wiring to all elements (except expansion tank switch) Applications Storage tank heating Extractions Reactor tanks Reheaters Stamping presses Industrial ovens and fryers Natural Gas handling Sleeved tanks Indirect steam generators
