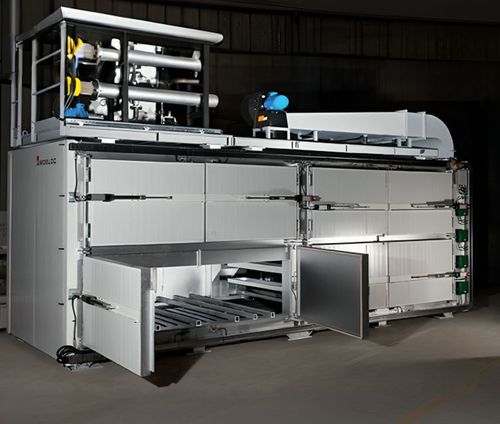

Cabinet oven

automatic

Heating ovens are heating devices of varying dimensions depending on the needs of a project. A thermal fluid boiler heats the radiators arranged inside the oven. The thermal insulation system of high density rockwool enables a system efficiency of 100%. Temperature regulation is fully automatic via a microprocessor regulator, achieving high stability and accuracy. The usual operating temperature range of our heating ovens is from 30 to 300°C. Heating is performed by both radiation and convection which facilitates the transmission of heat to parts arranged inside the furnace. The equipment has hinged doors with motorized arms and automatic opening and closing. The doors are provided with sealing gaskets and manual closing with microswitches to prevent heating while open. The system also has an audible alarm and manual reset system. The heating oven receives heated air from a battery (thermal oil-air heat exchanger) via a nozzle heated from above and below. Air ducts built of carbon steel plate. Support and anchorage are arranged on a suspended structure facilitating its linear expansion. This is also implemented via several independent curved heating sections. The device contains all components to ensure safety of operation. The metallic structure consists of steel profiles with the possibility of having shelves to support any large loads arranged within. The oven body is composed of galvanized sheet metal panels (coated on the inside and lacquered on the outside), with a panel thickness of 35mm, thermally insulated with rigid polyurethane foam of density 60 kg/m3. The power source can be natural gas, LPG, diesel or electricity.
